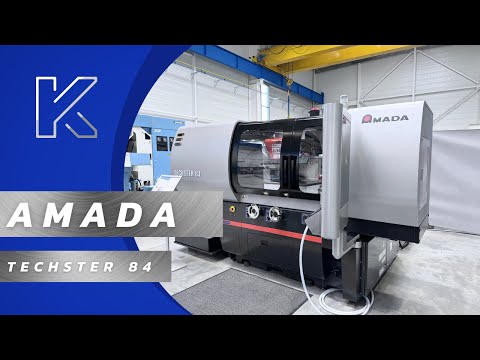

CNC Surface grinder AMADA Techster 84Amada
Techster 84
Machine data
- Machine type:
- CNC Surface grinder AMADA Techster 84
- Manufacturer:
- Amada
- Model:
- Techster 84
- Year of construction:
- 2014
- Condition:
- refurbished (used)
- Functionality:
- fully functional
- Operating hours:
- 5,675 h
Price & Location
- Location:
- Le Jasmin, 73240 Saint-Genix-les-Villages, France
Technical details
- Grinding length:
- 800 mm
- Grinding width:
- 400 mm
- Feed length X-axis:
- 450 mm
- Workpiece weight (max.):
- 1,000 kg
- Feed rate X-axis:
- 5 m/min
- Grinding wheel diameter:
- 355 mm
- Type of input current:
- three-phase
- Grinding wheel width:
- 50 mm
- Spindle speed (max.):
- 2,500 rpm
- Spindle speed (min.):
- 300 rpm
- Overall weight:
- 5,000 kg
- Distance stand to spindle center:
- 500 mm
- Rapid traverse X-axis:
- 5 m/min
- Rapid traverse Y-axis:
- 2 m/min
- Power:
- 7.5 kW (10.20 HP)
- Input voltage:
- 400 V
- Feed length W-axis:
- 1,000 mm
- Grinding wheel bore:
- 127 mm
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A20877117
- Reference number:
- 90162
- Update:
- 07.01.2026
Description
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2014
CNC control: FANUC series 32i-B
Maximum grinding lenght x width: 800 x 400 [mm]
W axis travel (longitudinal axis): 1000 [mm]
Min. Stroke speed W axis: 0.1 [mm/min]
Max. Stroke speed W axis: 40000 [mm/min]
X axis travel (transverse movement): 450 [mm]
Min. Stroke speed X axis: 0.1 [mm/min]
Max. Stroke speed X axis: 5000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Y axis (vertical movement): 500 [mm]
Min. Stroke speed Y axis: 0.1 [mm/min]
Max. Stroke speed Y axis: 500 [mm/min]
Resolution Y axis: 0.0001 [mm]
Max. distance spindle nose / table: 500 [mm]
Max. load on table: 1000 [Kg]
Min. grinding wheel speed: 300 [rpm]
Max. grinding wheel speed: 2500 [rpm]
Grinding spindle motor power: 7.5 [kW]
Max. diameter grinding wheel: 355 [mm]
Max. grinding wheel width: 50 [mm]
Grinding wheel bore: 127 [mm]
Number of running hours: 5675 [h]
Supply voltage: 400 [V]
Total power required: 23 [kVA]
Weight : 5000 [Kg]
EQUIPMENT / INCLUDED OPTIONS:
x1 SAV electro-magnetic chuck, type AH-243.73 P4 – dimensions: 600 x 400 [mm]
Dkodpfx Adox Sd H Sjasg
x1 automatic grinding wheel balancing device MPM, type BM50 + AB50.SM4
x1 automatic measuring probe with compensation function
1x rotary dresser
1x NC swivelling rotary dresser
1x static straight dresser
x2 linear glass scales on both X and Y axes
x1 paper tape filtration unit ARO TECHNOLOGIES AG, type PRA0025874
x1 oil chiller DAIKIN AKZ149M133
x1 oil mist extractor IFS, type IFMC 1100
3x wheel flanges
x4 grinding wheels
x1 set of service tools (wrenches)
x1 transformer
x1 set of technical manuals
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
Machine similar to brands like Okamoto, Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see cylindrical grinders, lathes, machining centers, and milling machines
