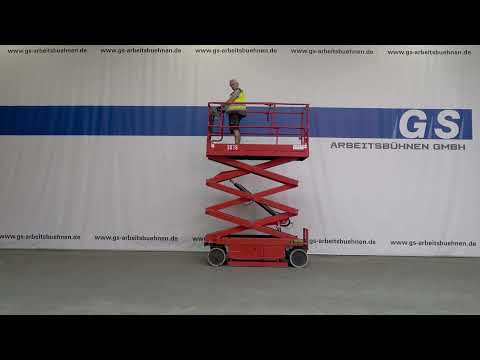

Scissor lift

Aichi SV 06 CNL

Condition: used, Year of construction: 2012, lifting height: 12,100 mm, fuel type: electric, Drivetrain Drive: Wheel Weights Empty weight: 1.810 kg Functional Lifting capacity: 360 kg Working height: 810 cm CE mark: yes Condition General condition: average Technical condition: average Visual appearance: average Other information Delivery terms: EXW Transport dimensions (LxWxH): 2,3x0,8x1,71 Production country: JP Additional information Please contact Christian Theißen for more information Manufacturer: Aichi Model: SV06CNL Year of build: 2012 Condition: Used Data: Iedpfx Aev Tibrsn Usar Max. working height: 8,10 m Max. platform height: 6,10 m Drive type: Battery Platform dimensions LxW: 2,21 x 0,71 m Length of the platform extension: 1,00 m Lifting capacity: 360 kg Lifting capacity on extension: 120 kg Total dimensions LxW: 2,30 x 0,80 m Height transport position with railing: 2,125 m Height transport position without railing: 1,715 m Max. Wheel load: 800 kg Max. climbing capacity: 25% Max. permissible longitudinal tilt angle: 3° Max. permissible cross slope angle: 1,5° Own weight: 1.810 kg Special features: white tires, attachment points for restraint systems (PSA) available, only for indoor use Information: Suitable transport trailer upon request for an additional charge of €2,999 Information: 3061 Charger missing, error message present, driving, steering, lifting without function. Location: 41468 Neuss immediately available

Condition: good (used), Year of construction: 2006, X 1000 mm , Y 600 mm Parts shown by hand not come. Iajdpfx Aju Dmy Dsn Uer

Condition: good (used), Year of construction: 2007, with UniRobot FMB Control: SIEMENS 828D Bed swing: Ø 540 mm Cross slide swing: Ø 360 mm Spindle – tailstock: 680 mm Max. turning diameter: Ø 310 mm Max. part length: 520 mm Iaedev S Ekyopfx An Usr Max. bar diameter: Ø 65 mm Travel: X = 210, Z = 610 mm Max. chuck size: Ø 254 mm Main spindle: 15/18 kW (100%, 60% duty cycle) Speed range: 60 – 4200 rpm continuously variable Max. torque: 192 Nm C-axis Rapid traverse: 1000 rpm TOOL TURRET 12 stations all driven Mounting: VDI 30 Speed range: 0-5000 rpm Max. drive power: 5 kW Max. torque: 20 Nm Automatic tailstock, hydraulic Travel: 500 mm Internal taper: MK 4 FMB MH5L-XP robot cell With Yaskawa Motoman MH 5 L robot Max. payload: 5 kg Max. working radius: 895 mm Weight: 27 kg Working range: S-axis (rotation): -170° ~ +170° L-axis (lower arm): -65° ~ +150° U-axis (upper arm): -138° ~ +255° R-axis (hand roller): -190° ~ +190° B-axis (joint/articulation): -135° ~ +135° T-axis (hand rotation): -360° ~ +360° With coolant system Chip conveyor, extraction system Total weight (machine/robotic): approx. 5300 kg

Condition: used, Year of construction: 2012, lifting height: 2,020 mm, fuel type: electric, Drivetrain Drive: Wheel Weights Empty weight: 1.120 kg Functional Lifting capacity: 227 kg Working height: 650 cm CE mark: yes Condition General condition: average Technical condition: average Visual appearance: average Iedpfxov Tki Do An Uoar Other information Delivery terms: EXW Transport dimensions (LxWxH): 1,8x0,81x2,02 Production country: CA Additional information Please contact Christian Theißen for more information Manufacturer: Skyjack Model: SJIII 3215 Year of build: 2012 Condition: Used Data: Max. working height: 6,50 m Platform height: 4,50 m Lifting capacity on extension: 227 kg Platform dimensions LxW: 1,58 x 0,66 m Total dimensions LxW: 1,80 x 0,81 m Height transport position with railing: 2,02 m Height transport position without railing: 1,64 m Movable up to working height: 6,50 m Ground clearance: 0,06 m Drive type: Battery Only indoor using: yes Own weight: 1.120 kg Special features: white tires, anchor points for restraint systems (PSA) available. Location: 41468 Neuss immediately available

Condition: excellent (used), Year of construction: 2022, operating hours: 116 h, machine/vehicle number: 50808900583766, load capacity: 318 kg, overall weight: 2,360 kg, product width (max.): 1,160 mm, working height: 11,780 mm, enginetype: Electric, manufacturer: Genie Ijdjxchd Tspfx An Uear
