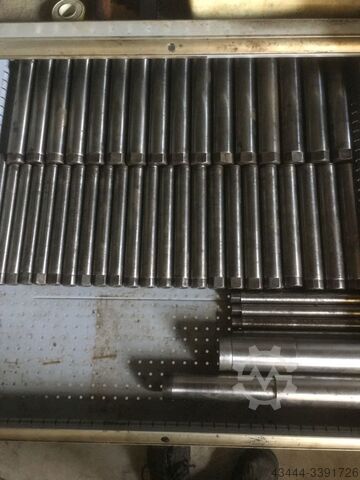

Grinding quills

- -

Year of construction: 1979, condition: ready for operation (used), Max. grinding diameter: 300mm, Max. grinding length: 1950mm, Max. workpiece length: 2000mm Max Feed rate 1 – 30 m/min. Fpsdshq Uigopfx Aayer Coolant supply 100 l/min Inf. variable speed range 2.000 – 6.000 RPM. Spindle 88 mm Centers height 150 mm Grinding wheels 100 – 250 mm Spindle power 3,5 kW Grinder Power 15 kW – 380 V – 50 Hz

Year of construction: 1990, condition: reconditioned (used), tangential grinding machine Brand: Jakobsen Model: 1432 Year: 1990 rpm: 1400 Grinding area: 800x400mm Fpjdsiv S Avepfx Aaysr Table size: 1000x350mm Maximum load on table: 400kg Maximum piece height: 475mm Grinding wheel size: 350x50x127mm Heidenhain ND 221B height indicator. Magnet table 800x350mm electronic Selter with magnetization regulator. Maximum distance between table and grinding wheel: 650mm MONNET brand filter of the year 2007 Includes sets of wheels (See photos).

Condition: new, Optimum OPTImill MZ 2S tool milling machine With digital 3-axis position display DP 700 from NEWALL. With inverter drive of the feed axes controllable from the control panel. Versatile application range Excellent damping characteristics and stability of the machine frame All guideways hardened and precision ground and adjustable by means of taper bars Automatic feed in X, Y and Z axes, infinitely adjustable via an electronic joystick on the control panel Electric feed limit stop Ball screw in all axes Central and clearly arranged control panel with integrated digital position and speed display Massive cross table, large dimensioned and precisely surface machined with 5 T-slots Coolant device Large dimensioned handwheels with scale Machine lamp Quiet running Manual central lubrication TECHNICAL DATA Dimensions and weights Length (product) approx. 1239mm width/depth (product) approx. 1168mm Height (product) approx. 1900mm weight (net) approx. 1400kg Drilling-milling head milling head swivel range ± 90 Drilling-milling capacity cutter head size max. 100mm drilling capacity steel (S235JR) 30mm Continuous drilling capacity steel (S235JR) 26mm End mill size max. 25mm Electrical data Power drive motor 2,2kW Supply voltage 400V Mains frequency 50Hz Horizontal milling table Horizontal milling table length 750mm Horizontal milling table width 320mm distance vertical spindle - horizontal milling table min. 75mm distance vertical spindle - horizontal milling table max. 410mm Horizontal milling table T-slots size 14mm Horizontal milling table T-slots number 5 Horizontal milling table T-slots distance 63mm Distance horizontal spindle - horizontal milling table min. 70mm Distance horizontal spindle - horizontal milling table max. 400mm Horizontal milling table load max. 285kg Milling table vertical Vertical milling table length 830mm Vertical milling table width 250mm Vertical milling table T-slots size 14mm Vertical milling table T-slots number 2 Vertical milling table T-slots distance 63mm Coolant system Coolant pump(s) Drive power 95W Travel Travel X-axis manual 400mm Travel Y-axis manual 200mm travel Z-axis manual 335mm Travel X-axis automatic approx. 310mm Travel Y-axis automaticapprox. 160mm Travel Z-axis automatic 295mm Vertical spindle Vertical spindle throat 100mm Vertical spindle Spindle mounting ISO 40 DIN 2080 Vertical spindle speed range 50 - 1890min¯¹ Vertical spindle number of speed ranges 12steps Vertical spindle tightening rod M 16 Vertical spindle quill stroke 120mm Vertical spindle load max. 1100Nm Feed speed Feed speed X-axis 10 - 600mm/min feed speed Y-axis 10 - 600mm/min Fpodpfxofnh Sge Aaysr feed speed Z-axis 10 - 600mm/min Electrical connection Total connected load 4kW Motor(s) rapid traverse X-axis power drive motor 0,375kW rapid traverse Y-axis power drive motor 0,375kW Rapid traverse Z-axis power drive motor 0.375kW SCOPE OF SUPPLY: Adapter ISO 40/MK3 adapter MK1 and MK 2 Milling spindle horizontal milling Ø 27 mm Operating tool

Condition: refurbished (used), Machine totaly reconditioned With DRO Fpsdewhk Uujpfx Aayor Center height 175 mm Distance between centers 1000 mm Grinding wheel 400 x 50 x 127 mm + 225 x 20 x 76.2 mm Grinding wheel speeds 1'500-2'200 rpm With internal grinding attachement Misc. accessories MARCELS MASCHINEN AG

Condition: used, Year of construction: 1967, functionality: fully functional, table width: 1,000 mm, table length: 810 mm, overall weight: 11,000 kg, workpiece weight (max.): 1,200 kg, spindle speed (max.): 1,600 rpm, spindle speed (min.): 32 rpm, spindle diameter: 120 mm, space requirement height: 2,475 mm, space requirement length: 3,970 mm, space requirement width: 2,230 mm, Equipment: rotational speed infinitely variable, - Maximum power consumption: 14 kW - Rated spindle power: 8 kW - Spindle drive power: 8 HP - Control voltage: 110 V - Table rotation continuously 360 degrees in both directions - Transverse table stroke (X-axis): 760 (+20) mm - Longitudinal table stroke (Z-axis): 760 (+20) mm - Vertical headstock stroke (Y-axis), min. and max. height of the spindle axis above the table: 50-710 (+20) mm - Rapid traverse: 2 m/min - 9 adjustable feed rates: 0.04 - 0.6 mm/rev - Hydraulically continuously adjustable working feed rates in manual mode (strokes): 0 - 3000 mm/min - Optical reading accuracy: linear axes 0.001 mm / manual rotary axis 1 sec. arc - Positioning referenced Accuracy on the built-in scales: ± 0.0015 mm / ± 2 sec. arc - With central lubrication of the guideways - Internal spindle: ISA No. 40 steep taper with Dixi bayonet, diameter 75 mm - Extras: Various tool holders, accessories, and operating instructions are included. Fsdpfx Aaewdwqnoyjpr

Year of construction: 1984, condition: used, gr. grinding Ø: 40 mm small grinding Ø: 5 mm Fpedpfx Aecq Rv Uoayor weight: 0,9 t 2 grinding wheels with flange 8 collets 1 coolant tank mechanical feed with fixed stop The cardan shaft for the workpiece drive is worn out

Condition: used, CNC cylindrical grinding machine STUDER S31 CNC LeanPro with "Pictogramming" Distance between centers: 1000mm Center heigh 175mm Grinding Wheel head rotation (B) 360° (1°) 2 ext Grinding Wheels 1 int Grinding Wheel Ext Grinding wheel 400 mm x 40 mm x 127 mm overhauled spindle > see photos Workhead CM 4 0-1000 RPM CNC Fanuc Programming: Pictogramming Heidenhain linear encoders Fpodpfswim U Hjx Aayor This machine can be inspected under power in our warehouse in Gussago BS Italy

Condition: new, GEOMET-2000 flow bench for calibrating a variable nozzle turbocharger without shaft rotation. This flow bench can calibrate the geometry of vacuum, air and electronically controlled turbochargers. The equipment is adapted to the needs of workshops for repairing turbochargers of trucks and cars. It is also designed to work with large-sized or non-standard turbocharger designs; Fedpfen E N E Ejx Aayspr Flowbench GEOMET-2000 will allow a regular workshop to provide professional turbine repair services, thus gaining more customers. HIGHLIGHTS Adjusting the end stop position of the air flow control mechanism (variable geometry) will eliminate the "overblowing" effect, which is detrimental to the engine. Adjusting the length of the actuator rod to adjust the actuation timing of the air flow control mechanism. Evaluating the spring elasticity of the actuator for in-depth diagnostics of vacuum and pneumatic actuators. Checking the operation of the N75 valve for turbines with vacuum valve, which is involved in controlling the turbocharger on the vehicle. Tuning of electronically driven turbos is done by connecting to an external tester ATP-1000. Vertical position of the turbocharger and free working area - comfortable and efficient work with all types of turbochargers. KEY FEATURES • More than 6200 turbo references database • Creation of a test plan for a new turbine from the manufacturer. • All measurements are done in real time. • Calibration of the test bench before starting work • Automatic atmospheric pressure and temperature compensation • N75 valve testing function • Built-in blower pump to create a constant airflow • Self-developed Turbo Test software. • Creation and printing of reports on the tuning process. • Quick turbine installation thanks to magnetic adapters • Self-diagnostics SPECIFICATIONS Maximum productivity of the vacuum pump 180 m3 Required pressure in the pneumatic system 0,6 – 0,8 MPa Power supply 220V, 1Ph, 50Hz Power input 1,5 kW Dimensions 1190 х 520 х 1730 mm Weight 255 kg

Condition: ready for operation (used), DANOBAT RTM 2500 – CNC Surface grinding machine | 2.500 mm Travel | 3.100 kg Table load High-capacity surface grinder designed for precision flat machining of large workpieces. Robust, accurate, and ready for demanding production environments. 🛠 Key technical features: • Max. grinding length: 2,500 mm • Max. grinding width (with 100 mm wheel): 900 mm • Max. grinding height (with Ø500 mm wheel): 1,000 mm • Table surface area: 2,500 x 800 mm • Max. table load: 3,100 kg • Electromagnetic chuck: 2,000 x 550 mm • X-axis travel: 2,650 mm at 1–30 m/min • Z-axis travel (cross): 800 mm • Y-axis travel (vertical): 1,150 mm • Z feed speed: up to 8,000 mm/min • Y feed speed: up to 1,000 mm/min • Positioning resolution: 0.001 mm • Encoder measurement on Z and Y axes ⚙️ Grinding head details: • Wheel diameter: 500 mm • Bore diameter: 203.2 mm • Max. wheel width with recess: 100 mm • Peripheral speed: 26 m/s Fpedpfx Aashq Ui Ioysr • Nominal speed: 1,000 rpm • Grinding motor power: 15 kW • Total installed power: 30 kW ✅ Additional features: • Prismatic guideways with Turcite coating • Angular grinding head • Paper band filtration system • Hydraulic unit power: 4 kW 📌 Perfect for high-precision large-part surface grinding. A solid solution for manufacturers who require size, stability, and sub-micron accuracy.

Condition: excellent (used), 1 permanent - magnetic Chuck D = 315 mm with mounting flange DIN 55027 Gr. 6 Fpjdpfx Aed Eaauoayor
