Used Tool Cutter Grinding Machine for sale (86,912)

Condition: good (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 004-040.0004, CNC Cylindrical Grinding Machine Manufacturer: STUDER Model: S22 CNC Year of manufacture: 2009 Hnjdpfx Aextpnzsh Hew Machine / Workpiece Data Distance between centers: approx. 650 mm Center height: 175 mm Maximum workpiece weight: 150 kg Maximum grinding length: approx. 800 mm Linear Axes / Guides X-axis (cross slide): Maximum travel approx. 310 mm X-axis feed rate up to approx. 15,000 mm/min (depending on configuration) Z-axis (longitudinal slide): Maximum travel approx. 850 mm Z-axis feed rate up to approx. 30,000 mm/min Grinding Spindle / Grinding Wheel Main spindle power, e.g. 12.5 kW in the standard version Standard grinding wheel diameter e.g. Ø 500 × 80 × 203 mm, circumferential speed up to approx. 50 m/s Optional high-speed grinding (HSG): e.g. grinding wheel Ø 400 x 40 x 127 mm, circumferential speed up to approx. 140 m/s Control / Software / Equipment Control, standard: e.g. FANUC 31i-A (PC integrated) with StuderWIN operator interface Guideways: Machine bed made from Granitan® S103 (mineral cast) for thermal stability and damping Dimensions / Electrical Data Machine weight approx. 8,500 kg Power supply, typically 400 V / 50 Hz (country-specific)

Condition: excellent (used), Year of construction: 2007, 5 controlled axes: X, Y, Z, A, and B Fully automatic grinding wheel changer NUM Axium Power 1050 control system with PC TOOL DATA Max. diameter: Ø 250 mm Max. diameter for complete machining: Ø 250 mm Max. length for complete machining (from front edge of workpiece support): 430 mm Hnedpfxsxt N Izj Ah Hew Max. tool length between centers: 480 mm Center height: 195 mm X-axis grinding travel: 625 mm Z-axis cross slide travel: 305 mm Y-axis vertical slide travel: 305 mm All linear axes are driven by high-precision ball screw spindles with 2 preloaded nuts. The axes are guided on extremely robust recirculating roller shoes on hardened rails. GRINDING HEAD, B AXIS Swiveling range in the horizontal plane: 240° Rotational speed: 120°/s Liquid-cooled motor spindle: 150 x 150 mm Grinding wheel mount with automatic quick-clamping system HSK - C/E 50 Spindle speed infinitely variable: 2,000 - 10,000 rpm Max. grinding wheel diameter: 150 mm Grinding wheel changer with 4 magazine slots Second probe arranged on the workpiece holder for automatic grinding wheel measurement, including software CHAIN LOADING MAGAZINE with PICK-UP arm Capacity: 160 tools Maximum workpiece diameter: 32 mm Maximum workpiece length: 200 mm Maximum tool weight: 2.5 kg CNC-controlled steady rest TURBO separator (filter system)

Condition: used, Year of construction: 1982, functionality: fully functional, HECKLER & KOCH - AM 442 Offer Details Stock number: 1039-9384 Machine type: Universal Tool Milling Machine Manufacturer: HECKLER & KOCH Model: AM 442 Year of manufacture: 1982 Control: conventional Location: D-59302 Oelde Country of origin: Germany Delivery time: by arrangement Freight terms: ex site Additional information: Universal Tool Milling Machine HECKLER & KOCH - AM 442 WE OFFER YOU: - workshop-tested machines - loaded onto truck free of charge - NO auction fees - delivery possible (at additional cost) - unloading and commissioning (at additional cost) Technical Details X-travel: 390 mm y-travel: 330 mm z-travel: 380 mm Control: conventional Table clamping surface: 850 x 255 mm Max. table load: 200 kg T-slot width: 12 mm H8 Number of T-slots: 5 T-slot spacing: 45 mm Spindle speed range (milling): 63 - 2,800 rpm Number of gear steps: 12 positions Feed: 0 - 1,500 mm/min Tool holder: SK 40 Rapid traverse: 1,500 mm/min Machine weight approx.: 1.9 t Space requirement approx.: 2.0 x 2.5 x 2.8 m Hsdpoxt N Rvofx Ah Henw

Condition: good (used), Year of construction: 1998, operating hours: 17,260 h, Table size: 1000 x 500 mm Tool holder: ISO 40 Travel distances: - X-axis: 800 mm - Y-axis: 500 mm - Z-axis: 420 mm Distance between horizontal spindle axis and table: 210 – 630 mm Distance between vertical spindle nose and table: 130 – 550 mm Table load capacity: max. 500 kg Spindle speed range: 50 – 4000 rpm Infinitely variable feed rate: 5 – 2000 mm/min Rapid traverse in all axes: 8 m/min Swiveling vertical milling head: ±90° Manual quill adjustment: 80 mm Drive power: 7.5 kW Dimensions (L x W x H): approx. 3000 x 2400 x 1975 mm Weight: approx. 3000 kg Accessories / Special features: • CNC path control HEIDENHAIN TNC 410 • Electronic handwheel HEIDENHAIN HR 410 Hsdpsxtu H Nofx Ah Honw • SIEMENS AC servo drives • Data interface V24/RS232 • Swiveling vertical milling head ±90° right & left with quill adjustment • Hydraulic tool clamping vertical & horizontal ISO 40 • Swivel-away device for the vertical milling head • Very high speed range up to 4,000 rpm • Vibration-free operation due to stable, heavily ribbed cast iron guides • Ball screw drives for X, Y and Z axes • All electrical controls on one side, in movable control panel • Fixed angle table with foldable chip guard • Coolant system integrated into machine base • Hydraulic power unit • Central lubrication • CE compliant Operating hours: 17,256 Spindle hours: 3,816 Image shows a sample catalog photo. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: refurbished (used), Year of construction: 2025, operating hours: 36 h, functionality: fully functional, machine/vehicle number: 1024-54, Country of Manufacture: Switzerland Voltage: 380/50/3 Net weight: approx. 1600 kg Customs tariff: 8460.2920 Dimensions: 235 x 155 x 145 cm TECHNICAL FEATURES: MAIN DIMENSIONS: Centre height: 100 mm Distance between centres: 400 mm Hnsdsw T Sc Njpfx Ah Hew LONGITUDINAL SLIDE: Max travel: 420 mm Minimum automatic travel: 1 mm Table feed speed: 100–3500 mm/min Overtravel delay: 0–5 sec. Maximum table swivel (400/650 mm): 30°/15° CROSS SLIDE: Max travel: 170 mm Rapid traverse: 30 mm Plunge depth (diameter): 1.9 mm Feed rate 1: 0.03–1.5 mm/min Feed rate 2: 0.02–0.3 mm/min Plunge feed per impulse: 0.0005–0.025 mm WHEELHEAD: Grinding wheel (diameter x width x bore): 350 x 32 x 127 mm Drive power: 3 kW Peripheral speed: 30 m/s Spindle speeds: 1600/1975/2200 rpm Manual stroke: 120 mm Swivel to right: 15°/30° Optional wheel guard for wheel set max width: 50 mm WORKHEAD: Swivel range: 0°–90° Spindle speeds: 80/175/380/800 rpm Internal taper: Morse 4 Collet type: W-20 Drive power: 0.5 kW Maximum workpiece weight: 20 kg Load for in-the-air grinding: 12 Nm Optional stepless drive speed range I: 30–300 rpm Optional stepless drive speed range II: 120–1200 rpm TAILSTOCK: Internal taper: Morse 2 Quill travel: 20 mm GUARANTEED WORKING ACCURACY: Generator straightness: Between centres: 400 mm Measured over 400 mm: 0.002 mm Between centres: 650 mm Measured over 650 mm: 0.003 mm Roundness accuracy for in-the-air grinding: 0.0004 mm CONNECTION VALUES: Power consumption: max. 8 kVA Permissible voltage variation: –15% / +10% Permissible frequency variation: ±3% Compressed air: 5 bar All technical specifications are given without obligation and subject to errors or omissions.

Condition: good (used), Year of construction: 2000, Ref. -No.: 10609 Manufacturer: GLEASON - PFAUTER Type: P 2400 G Year of construction: 2000 Type of control: CNC Control: Siemens 840 D Storage location: Halberstadt Country of origin: Germany Machine length: 1100 mm Machine width: 6585 mm Hsdpfx Ahsxvw R Nj Hsnw Machine Height: 5200 mm Max. Workpiece Diameter: 2640 mm Weight Of The Machine Ca.: 23 t Grinding Wheel Diameter: 400 mm Spindle Speeds (Infinitely Variable): 600 bis 6000 mm Grinding Wheel Width: 80 mm X-Axis: 1200 mm Y-Axis: 300 mm Z-Axis: 1000 mm Z2 - axis: 150 mm Sandable profile depth: 80 mm Workpiece table: 0 bis 5 1 / min Feed rate X-axis: 3000 mm Feed rate Y-axis: 5000 mm Z-axis feed rate: 6000 mm Further information: - Fully automatic centering device - Oil mist separation - Gear tooth measurement - “Profile grinding” software package - Error diagnosis - IFK2 internal milling head - Milling mandrel with spacer discs - Chip conveyor - Oil mist extraction - Technical documentation

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, Used CNC cylindrical grinding machine Make: FORTUNA Type: T23 S1000 ASW 45 CNC Hnsdpfx Ahev Eyr So Hew Year of manufacture: 1980

Condition: ready for operation (used), Year of construction: 2005, grinding length: 400 mm, grinding width: 200 mm, capacity 400x200MM, manual table, magnetic chuck, external electrical cabinet Hodpoxc Ivcofx Ah Honw

Year of construction: 2019, condition: excellent (used), Machine capacity CAPACITIES · Height of centre points Max. diameter for cylindrical grinding Distance between centres Max. length for cylindrical grinding Max. workpiece weight without steadies | Metric | |---|---| | 335 mm | | 450 mm | | 2150 mm | | 2100 mm | | 260 kg | TECHNICAL DATA Metric GRINDING SPINDLE UNIT Cylindrical grinding spindle 1: Electric spindle Max. grinding wheel dimensions: 610 × 50 × 203.5 mm Peripheral speed of grinding wheel: 30 - 125 m/sec Max. grinding spindle speed: 4420 min⁻¹ Cylindrical grinding spindle 2: Electric spindle Max. grinding wheel dimensions: 350 × 20 × 127 mm Peripheral speed of grinding wheel: 70 - 110 m/sec Max. grinding spindle speed: 6000 min⁻¹ X & Z AXES X & Z axes movement: ball screw X-axis traverse path: 460 mm X-axis speed range: 0-5000 mm/min X-axis resolution: 0.0001 mm Z-axis traverse path: 2590 mm Z-axis speed range: 0-5000 mm/min Z-axis resolution: 0.0001 mm B AXIS Swivel angle: 0 - 180° Type: automatic via torque motor C AXIS Workpiece speed range: 0-750 min⁻¹ Coupling type: headstock and tailstock TM 5 Tailstock sleeve diameter: 80 mm Tailstock sleeve stroke: 80 mm Tailstock adjustment accuracy: +/- 200 μm EQUIPMENT DETAILS GRINDING WHEEL DRESSING DEVICE Type: dressing station with fixed points for cylindrical grinding + electric spindle for diamond dressing roll COOLANT SYSTEM Type: magnetic separator and filter paper Flow rate / output: 50-200 l/min Hjdpfx Ahsxr I Anj Henw Tank capacity: 2000 litres Pump pressure: 5-20 bar OIL MIST EXTRACTION UNIT Volume flow / exhaust quantity: 2000 m³/h Max. power: 2.3 kW CNC CONTROL Brand: Siemens Model: Sinumerik 840 SL Unit system: metric MEASURING SYSTEMS FOR X & Z AXES Type: linear encoder

Condition: used, Table size 650 x 250 mm X/Y/Z - 400/330/475 mm Spindle speeds 63-2800 rpm Spindle taper ISO 30 Equipped with: 3-axis dro Heidenhain Collet chuck Hsdpfx Ahsr E Nd Ds Henw Various collets - more than 100 pcs. 7 pcs. Vices 23 Toolholders Dividing head w/discs Rotary table 250 mm dia. Angle plate Coolant Lots of other accessories - see photos

Condition: used, Year of construction: 2012, functionality: fully functional, JONES & SHIPMAN - Suprema Easy 1500 E Offer Details Stock number: 1039-9045 Machine type: External cylindrical grinding machine Manufacturer: JONES & SHIPMAN Model: Suprema Easy 1500 E Year of manufacture: 2012 Control system: Touch Jones & Shipman Location: D-59302 Oelde Country of origin: England Availability: immediately Delivery terms: ex works Additional information: External Cylindrical Grinding Machine JONES & SHIPMAN – Suprema Easy 1500 E - Spare grinding wheel flange - Multi-grain diamond dresser (for peripheral and side dressing, 10mm, 1 carat) - Tailstock with micrometric adjustment (max. adjustment range ±0.05mm) - Pneumatic quill retraction - Two-jaw steady rest (range 8–75 mm) WE OFFER YOU: - workshop-tested machines - free loading onto truck - NO auction fees - possible delivery (at extra cost) - unloading and commissioning (at extra cost) Technical Specifications Grinding diameter: max. 320 mm Grinding length: 1,500 mm Centre height: 160 mm Control: Touch Jones & Shipman Between centres: max. 100 kg Table: Z-axis travel: 1,645 mm Travel speed: 0.0001 – 12 m/min Swivel angle: +5 / -5° X-axis: X-axis travel: 260 mm Travel speed: 0.0001 – 6 m/min Hnedpfoxtn Sfox Ah Hsw Grinding head: Grinding spindle motor: 7.5 kW Cutting speed: 45 m/s Grinding wheel Ø x width x bore: 450 x 50 x 203.2 mm Tailstock: Swivel range: -15 / +90° Speed range: 0 – 660 rpm Torque: 27 Nm Taper: MK 3 Total power requirement: kW Machine weight approx.: 8.5 t Space requirements approx.: 5.5 x 2.5 x 2.0 m Accessories - Paper band filter - Magnetic separator for coolant - Coolant system

Condition: good (used), Year of construction: 1988, Ref. -No.: 10396 Manufacturer: KELLENBERGER Type: 600 U - Nr. 40 Hedpfjxvw E Tex Ah Honw Year of construction: 1988 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175 - 250 mm Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0 - 5 Sec Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 1500/1700/2200/3600 Swiveling grinding wheel head: 360 ° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Micro-corrector of the feed, 1 division of the dial: 0,001 mm / Ø Working speeds continuously adjustable (normal / special): 20-400/10-400 Max. Grinding length: 900 mm

Condition: excellent (used), Year of construction: 2012, DISKUS DDS 750 XR – Technical Specifications Machine type: vertical double-disc grinding machine Model: DDS 750 XR Grinding wheel diameter: 750 mm Maximum grinding width (through-feed): 180 mm Maximum material thickness (through-feed): 30 mm Maximum grinding width (plunge-cut): 300 mm Maximum material thickness (plunge-cut): 80 mm Grinding spindle 1 power: 48 kW Grinding spindle 2 power: 48 kW Grinding wheel surface speed (max): 63 m/s Coolant delivery: through the spindle center Feeder type: rotary feeder Feeder speed range: 20 mm/min to 240 mm/min Control system: Siemens 840 D CNC Total machine height: approx. 3,100 mm Overall weight: approx. 13,000 kg Footprint requirements: length approx. 4,900 mm, width approx. 5,000 mm Hsdpfxewwrqcs Ah Hsnw Construction features: triangular rigid frame, linear-guide spindles, 16 CNC axes, central lubrication, coolant filtration

Condition: good (used), Iseli EBW flank grinder Hodpfxod Ncg As Ah Hsnw

Condition: used, functionality: unexamined, machine/vehicle number: 2820-0520, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, quill stroke: 80 mm, table length: 700 mm, table width: 460 mm, rotational speed (max.): 4,000 rpm, ★★★ CNC Tool Milling Machine Deckel FP3A ★★★ ● Machine Number: 2820-0520 ● Condition: Not tested ● Delivery Terms: Free loaded on truck – Unpacked ● Location: Sprockhövel ● Availability: Immediate ● Payment Terms: Advance payment – by bank transfer ● Internal No.: DÖRK2 ⚙️Technical Specifications ☑️Control: Grundig Contour 3 ☑️Tool Holder: SK 40 ☑️Travel: X 400 mm, Y 400 mm, Z 400 mm ☑️Vertical Quill Stroke: 80 mm ☑️Table Dimensions: 700 x 460 mm ☑️Vertical and horizontal milling ☑️Speed: up to 4,000 rpm ☑️Vertical milling head adjustable on spindle block: 50 mm ☑️Voltage: 380 V / 50 Hz ☑️Power consumption: 14.5 kVA ☑️Coolant system ☑️Handwheel ☑️ALLMATIC HD 160 vice Scope of delivery ✔ ALLMATIC HD 160 vice ✔ Available manuals (see pictures) Dimensions & Weights ● Installation dimensions L x W x H approx.: 3000 x 3000 x 2200 mm ● Weight approx.: 2,000 kg If you have any questions or would like to arrange a viewing, please feel free to contact us. ⚠️Be sure to check out our other listings as well⚠️ Additional notes: ►We expressly recommend collection via direct shipment (freight carrier) ►The goods are sold under exclusion of any warranty ►Technical data not guaranteed ►Subject to prior sale Hedpsw Aicysfx Ah Henw ❗The sale of the goods is exclusively to businesses❗

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, 10 cup wheels vertical glass edging machine with variable angle 0-45° actual running meters : 260.000 Hsdpfx Ajw U Ddueh Hjnw min. glass size : 40 x 40 mm glass thikness : 3 - 55 mm speed : 0,4 - 6 m/min. voltage : 400 V 50 Hz 39 A weight : 4600 Kg

Condition: used, Year of construction: 1998, control Siemens Sinumerik grinding wheel diameter 900 mm grinding wheel width 20-80 mm In our opinion, the machine is in good condition used condition. Double face side grinders The machine was used for the production of connecting rods. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Hnodoxuv Udjpfx Ah How Subject to prior sale!

Year of construction: 2001, condition: good (used), table diameter 200 mm workpiece height 100 mm number of wheels 1 Control Robot CNC total power requirement 6 kW weight of the machine ca. 1,8 t dimensions of the machine ca. 1,83 x 2,04 x 2,1 m Technical data - Grinding capacity : Ø 0.025 –12.7 [mm] - Bar diameter : Ø 1.0 –12.7 [mm] - Grinding length : W15 (option W20) - Z-axis : 35[mm] Resolution : 0.5 [µm] – X- axis : 25 [ mm] Resolution : 0.1µm – Y-axis : 286[mm] Resolution : 0.5µm – U- axis : 15 [mm] Resolution : 0.1µm Head Motor: 0.70 [kW] Rotation: 300 – 3000 [rpm] Grinding - Raw grinding : 1.5 [kW] Spindle : Ø 60 [mm] Grinding wheel diameter : Ø 200 [mm] Cutting speed : 30 m/sec. - Completion: 0.75 [kW] Hnjdpfjtt Tb Dex Ah Hsw Spindle: Ø100 [mm] Grinding wheel diameter: Ø150 [mm] Cutting speed: adjustable - Dimensions (L x W x H): 1830 x 2040 x 2100 mm - Weight: approx. 1800 [kg] Accessories - Loading and unloading robots - Fire protection device CONTROL axes; 4 axes + 2 programmable robots - simultaneously linear interpolation of the 4 axes + cylindrical interpolation of 2 robot axes

Condition: good (used), Year of construction: 1992, Favretto MB 130 – Technical Specifications Machine type: tangential (horizontal) surface grinding machine Year of manufacture: 1992 Table size: 1700 × 400 mm Magnetic chuck size: approximately 1300 × 400 mm Magnetic plate height: 40 mm Longitudinal travel (X-axis): 1380 mm Cross travel (Y-axis): 450 mm Vertical travel (Z-axis): 550 mm Distance between spindle center and table surface: 203 mm (min) to 753 mm (max) Grinding wheel dimensions: 400 mm diameter × 152 mm width × 100 mm bore Spindle speed: approximately 1400 rpm Longitudinal feed rate: 2000 to 40000 mm/min Cross feed rate: 50 to 3000 mm/min Vertical feed rate: 700 mm/min Grinding head motor power: approximately 15 kW Hedpfx Ahot Rwvze Hjnw Total installed power: approximately 25 kW Maximum table load without magnetic chuck: approximately 1500 kg Maximum table load with magnetic chuck: approximately 1205 kg Overall grinding capacity (L × W × H): approximately 1500 × 600 × 550 mm Machine weight: approximately 7100 kg

Condition: used, Year of construction: 1995, grinding length 400 mm Hedpfxsxu Ntgo Ah Hjnw grinding width 200 mm workpiece height 300 mm table adjustment - longitudinal max. 420 mm table cross movement max. 190 mm distance spindle center to table 90 - 415 mm table speeds 2 - 28 m/min table load max. 150 kg cross feed of table intermittent 3 - 20 mm rapid traverse cross 7 mm/min rapid traverse vertical 180 mm/min grinding wheel size ø 225 x 25 x ø 51 mm total power requirement 7 kW weight of the machine ca. 1,5 t dimensions of machine L x W x H 2,20 x 1,46 x 2,10 m Accessories: magnetic plate 400 x 200 mm, grinding wheel with flange, balancing scale, 1 flange separate, 2 grinding wheels separate, DRO on Y-axis, wet grinding attachment

Condition: used, Year of construction: 1990, 1000 x 600 mm magnetic plate size 1000 x 600 mm grinding height max 400 mm grinding wheel width x diameter 400 x 60 x 127 mm Hnedpfx Aevanvujh Hjw dimensions 3900 x 20 50 x 2400 m ja weight of the machine ca. 6 t

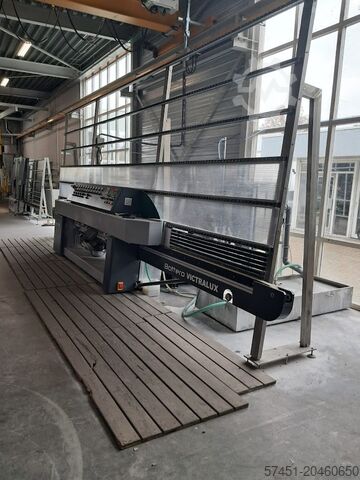

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, 11 cup wheels vertical glass grindingmachine with higher rack , liquid cerium , water tanks and separate inlet arm permit loadings of large size glass . glass thikness : 3 - 50 mm min. glass size : 40 x 40 mm spoeed : 0,6 - 6 m/min. total working meters : 152000 Hnedexuqdmepfx Ah Hjw working video from production on demand . available : from stock .

Condition: used, Year of construction: 1954, x-travel 600 mm Hnsdpfsvu Hl Dex Ah How ja

Condition: used, Year of construction: 1954, grinding length 600 mm Hodpfxjvu Hkyo Ah Hsnw grinding width 205 mm x-travel 600 mm ja

Condition: used, Year of construction: 1999, magnetic clamping plate 1400 - 700 mm weight of the machine ca. 6 t Hsdpfxovu Hlqo Ah Henw
