Three-sided tipper truck

MAN TGM 18.320 4x2 BB 3-Seiten Krankipper Palfinger

Internal reference number for customer inquiries: 3164
---- MAN TGM 18.320 4x2 BB WITH PAVIC THREE-WAY TIPPER BODY AND PALFINGER CRANE

An ideal vehicle for landscaping, civil engineering, construction site operations, or as a municipal utility vehicle!

Vehicle:

* MAN TGM 18.320 4x2 BB loader crane tipper
* Cab type CC: compact (narrow, short, standard height)
* Wheelbase: 3,875 mm
* Suspension: leaf/leaf (front suspension available as leaf/air)
* Drive: 4x2
* Front tyres: 2x 295/80R22.5, Rear tyres: 4x 295/80R22.5
* Gross vehicle weight: 18,000 kg
* Automatic transmission: MAN TipMatic 12 12 OD
* Diesel engine: MAN D0836 LFLAP, 235 kW (320 hp), 1,250 Nm torque, Euro 6d
* Transmission function: EfficientRoll
* Cruise control
* Rear axle differential lock
* MEILLER axial pump 270/45
* Control for tipper body in cabin
* MAN EasyControl panel, 4 functions, operable from outside with door open
* Trailer coupling: RINGFEDER type 4040/G150B
* Dual-line brake connection at end of frame
* Sun visor in front of windshield
* Central locking with remote control

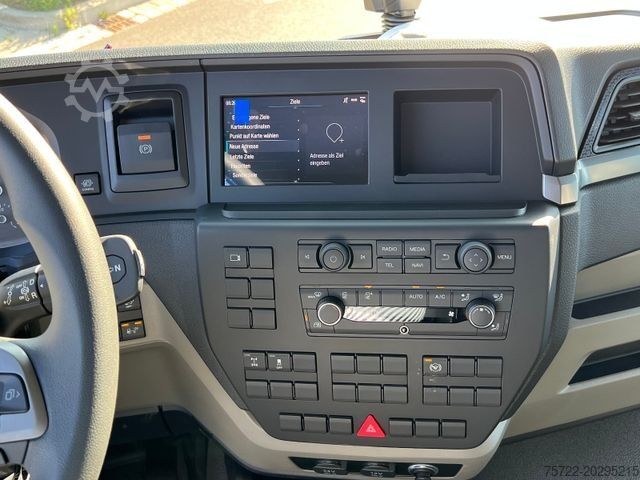

* MAN Media System Navigation Advanced 7 inch
* Online traffic for navigation function
* Smartphone integration
* Rear-view and wide-angle mirrors heated and electrically adjustable
* Air-sprung comfort driver's seat with lumbar support, shoulder adaptation, and heating
* Height-adjustable seatbelt on driver's seat
* 2 work lights on cab roof
* 2 halogen beacon lights on cab roof
* much more

Superstructure:

* Three-way tipper body 4200 x 2420 mm, manufactured by PAVIC
* Front wall height: 800 mm
* Sideboard height: 600 mm
* 8 fully recessed lashing rings in bed floor (4 per side)
* Material: Hardox 450
* Support for horizontal placement of the sideboard with rubber pad (for transporting long loads)
* Spring-assisted sideboards for easier opening and closing
* 2 lashing eyes on the front wall (for securing e.g. a compactor or grapple)
Gksdpsxnnvtsfx Aacoc
* Tipper with hot-dip galvanization; boards and accessories fully painted with 2K truck coating in RAL9016
* Subframe galvanized and painted in RAL9011
* Side panels each made from a single piece, can be pneumatically opened from both sides via air valve in the cab; can swing down on all sides from below (pendulum style), manually from top to bottom; center stanchions removable
* Spring-assisted sideboards for easier opening and closing

* Additional superstructure equipment: pre-prepared mounting points in the pillars for optional future installation of leaf racks (side wall extensions PLUS 500 mm for e.g. transport of clippings)

Loader Crane:

* Palfinger PK 14.501 K SLD 5
* PALFINGER SOLID truck-mounted loader crane with KTL coating
* Four hydraulic extensions – reach: 11.7 m
* Lifting moment: 142.4 kNm (14.5 mt)
* Slewing range: 420°
* Electronic overload protection PALTRONIC incl. EMERGENCY STOP and load indicator
* Operating hours counter with service interval display
* Scanreco radio remote control
* Load and overload indicator (PALTRONIC) on remote control unit
* 5 selectable operating speeds

Financing, as well as leasing or hire purchase, is available.

For further questions, our sales team will be happy to assist you.

This is a non-binding offer. Subject to prior sale, errors, and changes.
