Used Deckel Teilapparat Deckel Fp1 / Fp2 for sale (910)

Condition: new, centre height // mm Fgodpfx Aszcgfqja Eef total power requirement / kW weight of the machine ca. / t required space / m Parts machine for lids FP1 / FP2 Condition: NEW

Condition: used, Counter bearing and adapter for milling machine for horizontal milling Counter bearing and adapter (counterholder) for DECKEL milling machine (Bearing block with dovetail mounting adapter DECKEL FP1 + FP2) Type 9570 Dovetail width, narrow: approx. 72 mm Dovetail width, wide: approx. 88 mm Dovetail height: approx. 15 mm Length (bearing block): 133 mm Fgsdpfx Aasxcbl Dj Ejf Width (bearing block): 50 mm Total height (bearing block): 105 mm Bearing bore: Ø 17 mm (with bronze bearing bushing) Distance from bore axis to dovetail mounting face: approx. 82.5 mm (center height) - Adapter fits dovetail and mounting surface, raises center height by 22.5 mm to 105 mm Total length (dovetail rail): 635 mm Weight: 3.8 kg Very good condition

Year of construction: 1990, condition: good (used), Various collet chucks and holders, approximately 300 pieces. For DECKEL milling machines Fedpehvz Iiofx Aa Eogf FP1 - FP2 - FP3 - FP4 Individual sales upon request.

Condition: good (used), Year of construction: 1982, functionality: fully functional, Tool milling machine with 3D control, manual handwheels, and a universal table adjustable in three axes. Control: Deckel Dialog Control 4: 3D contouring control, including drilling and milling cycles Monitor, electronic handheld control panel Terminal for program input and output Technical specifications: Travel range X/Y/Z 300 x 220 x 400 mm Speed 31.5 - 3,150 rpm with 21 gear stages Feed rate 4-2,000 mm/min Rapid traverse 4 m/min Drive power 1.6-2.0 kW SK 40 tool holder Hydraulic tool clamping Universal milling table with digital display: Clamping area 600 mm x 320 mm Table load 180 kg C-axis rotation range 360° A-axis tilt range 15°/45° B-axis swivel range +/- 45° Vertical milling head: Manual quill stroke - horizontally 65 mm, vertically 60 mm Additional equipment: Fsdewid Spopfx Aa Esgf Manual machine handwheels with scale Direct travel measurement of the NC axes Cooling water system Special accessories: Approx. 33 tool holders (without tools) - see photo High-speed milling spindle Machine data: Machine weight approx. 1,380 kg Space requirement including accessories L approx. 2,940 mm, W approx. 1,900 mm, H approx. 1,960 mm Power supply: 380 V, 50 Hz, 12 kVA The machine is in good, fully functional condition. It can be inspected with power and chippings by appointment.

Condition: good (used), functionality: fully functional, DECKEL FP1 Active milling machine Manufacturer: Deckel Type: FP1 Active Condition: very good Control type conventional Control active HEIDENHAIN TNC X-path 300 mm Y-path 160 mm Z-path 340 mm Tool holder SK40 Speed 40-2000 rpm. Control Active HEIDENHAIN TNC Fjdpfx Aaoztynfj Eogf Total power requirement 2 kW Machine weight approx. 0.73 t Space requirement approx. TBH 1200x1100x1600 mm

Condition: good (used), functionality: fully functional, Universal milling machine Deckel FP2Lb, directly from the seller Technical data: >> Machine no. 0793 >> Fixed angular table (clamping surface 1000 mm x 440 mm) >> Speed: 40 - 2000 rpm >> Feed and rapid traverse in 3 axes >> Feed from 8 to 400 mm/min >> Rapid traverse 1500 mm/min in all feed directions Fgedpfxjztav As Aa Eof >> Drive power: approx. 2.2 kW >> Travel ranges X/Y/Z: 800/300/400 mm (Y travel can be extended by another 200 mm) >> Equipment: Vertical & horizontal spindle >> Extendable vertical quill and horizontal quill - SK-40 >> Collet system S20x2 >> Weight approx. 1900 kg Accessories and equipment: >> Central lubrication >> Modification of the control cabinet About the machine: Offered is a used universal milling machine Deckel FP2Lb in working condition. The machine comes directly from the seller and is sold as is. The vertical head can be moved by 200 mm to enable an even larger working area. A central pump ensures the lubrication of the various axes. A special feature of this machine type is its basic design; it is a machine with an inclined table bed. The movement processes are assigned to the work spindle and thus to the tool. Different workpiece weights do not affect the axis movements. Take advantage of the opportunity to inspect and test the machine on site while it is powered up. The Deckel is sold as a source of spare parts, without inspection and without warranty.

Condition: excellent (used), Year of construction: 1982, functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis digital display, Heidenhain active control, and continuously variable feed. Fgodpfx Aajzrn Tys Ejf Technical data: >> Year of manufacture: 1982, Machine no. 2101-1995 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Continuously variable feed in 2 axes >> Rapid traverse in 2 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travels X/Y/Z: 300/160/340 mm >> Vertical milling head, adjustable by 100mm on the spindle head >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain >> Coolant system >> Operating manual, parts list About the machine: Offered is a Deckel FP1 universal milling machine in very good original condition. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs smoothly. The FP1 was in a training workshop at a university and was used very little. This newer FP1 model has continuously variable feed in two axes, and the machine also has rapid traverse in these axes. A major advantage is the active 2-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically approach. An oil change has been carried out. Mechanically and electrically inspected. The Heidenhain digital display makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on-site while it is powered up.

Condition: used, x-travel 300 mm y-travel 300 mm z-travel 400 mm Control Dialog 11 turning speed range - main spindle 40 - 4000 min/-1 tool taper SK 40 swivellable +/- 90 ° quill stroke 80 mm In our opinion, the machine is in very good used condition and can be inspected Fgedszq Hlfepfx Aa Eef under power by appointment. Accessories: - Cabin Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as prior sale reserved!

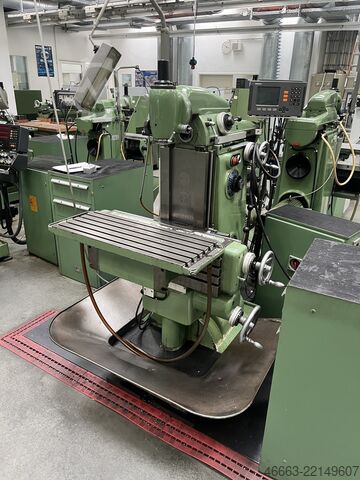

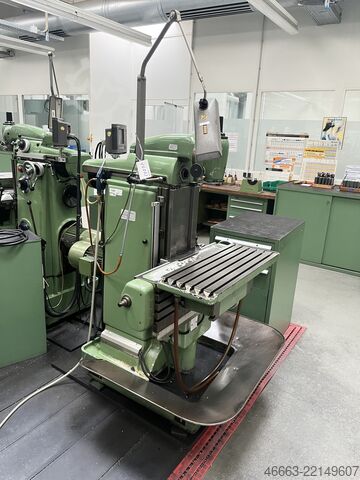

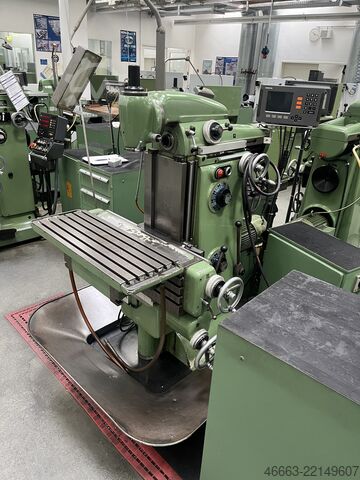

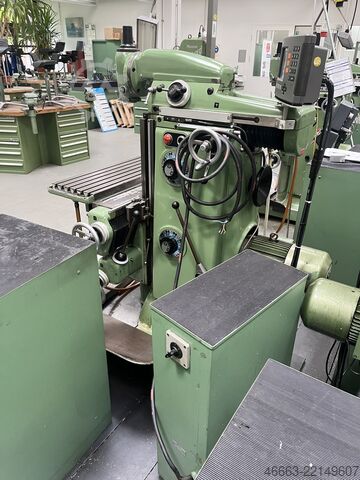

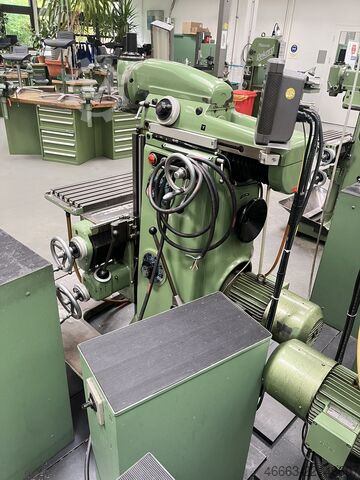

Condition: good (used), Year of construction: 1975, Deckel FP2 – 3-axis milling machine with Fagor digital display. The machine is in good condition and comes from a training department. It features a universal swivel rotary table and an SK 40 spindle mount. Accessories include various collets and milling arbors. Good, operational condition. Can be demonstrated under power by arrangement. Fjdjzruudjpfx Aa Eegf

Condition: good (used), Year of construction: 1985, machine/vehicle number: 2102-2821, Offer 26207 Technical data: - Machine originates from the Weser Ems vocational training center and underwent a complete overhaul at - FPS Werkzeugmaschinen GmbH in Warngau in 2015-2016. - Table size 600 x 220 mm - Working range of the axes: - X (longitudinal) 300 mm - Y (transverse) 340 mm - Z (vertical) 150 mm - Distance between table axis and stand 655 mm - Tool holder ISA 40 - 16 working spindle speeds 40 - 2000 rpm - Feed rates X - Y - Z axes 10 - 500 mm/min - Rapid traverse 1200 mm/min - Drive 400 V / 1.1 / 1.3 kW - Space requirement approx. W 650 x H 1600 x D 1000 mm - Weight approx. 600 kg - Including: Fgsdpfozrfifjx Aa Eof - Positioning control with Active digital display - Adjustable vertical milling head with drilling spindle - Central lubrication system - Fixed angular table - Collet set, various holders + milling cutters - Rotary table - Drawer cabinet with drawers on roller bearings

Condition: ready for operation (used), machine/vehicle number: 46436, Travel distances: Fjdpfeygia Ejx Aa Eegf longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm Features: - Sliding vertical milling head - Tilting angle table 260 x 600 mm - Various tool holders - Setup elements - Rotary table D:280 mm - Documentation Condition: workshop-tested

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 9585, DECKEL Universal Milling and Drilling Machine Model: FP 2 Machine No.: 9585 Fgedpfoygicaex Aa Eof Year of manufacture: 1978/79 Condition: Good, operational condition Travel distances: longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis digital display K&C, stepless feed, light gray color, CE compliant, in excellent condition. Technical data: >> Year of manufacture 1980, machine number 2101-1423 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Stepless feed on 2 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Rapid traverse >> Travel distances X/Y/Z: 300/160/340 mm >> Vertical milling head on spindle support, adjustable by 100 mm >> Vertical and horizontal quill - SK40 >> Clamping system M16 >> Weight approx. 700 kg Accessories and equipment: >> 3-axis digital display K&C, newly installed with manufacturer's warranty and operating manual. Fgedpfx Aezl Uz Dja Eof Display unit: Setting reference points, zero points, entering coordinates, switching between mm/inch, absolute or incremental coordinates, circular functions, hole patterns, radius milling functions, etc. >> Coolant system >> Machine lamp >> Operating manual, parts list >> Tool holders, vise, backstop About the machine: Offered is a universal milling machine Deckel FP1, CE compliant, in very good condition. The machine has very little backlash and all spindles move easily. The bellows are all new. In this newer FP1 model, the feed is steplessly adjustable on two axes, and the machine also has a rapid traverse function. An oil change has been carried out. Mechanically and electrically inspected. Thanks to the new digital display from K&C, working with the machine is easier and even more precise. Take advantage of the opportunity to inspect and test this machine on-site while it is powered on.

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and continuously variable feed, in very good condition, CE compliant. Technical data: >> Year of manufacture: 1987, Machine No. 2102-3562 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Continuously variable feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travel ranges X/Y/Z: 300/160/340 mm >> Vertical milling head on spindle support, adjustable by 100 mm >> Vertical and horizontal quill - SK40 >> Clamping system M16 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 Fgodpjzl Eifsfx Aa Eef >> Coolant system >> Machine lamp >> Operating manual, spare parts list >> Tool holders, vise, counter holder About the machine: Offered is a universal milling machine Deckel FP1 in very good condition and CE compliant. The machine has very little backlash and all spindles can be moved easily. Even at maximum speeds, the milling machine runs very smoothly. In this newer FP1 model, the feed is continuously adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically approach. The FP1 was located in a training workshop, where it was only used occasionally. An oil change has been carried out. Mechanically and electrically tested. The digital display from Heidenhain makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on-site while it is powered up.

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and stepless feed, in very good condition. Accessories, CE compliant. Technical data: >> Year of manufacture 1992, machine no. 2102-7007 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Stepless feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travels X/Y/Z: 300/160/340 mm >> Vertical milling head, adjustable on spindle head by 100 mm >> Vertical and horizontal quill - SK40 >> Clamping system M16 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, parts list >> Tool holders, vise, counter holder Fgedpjzl Ebbsfx Aa Eef About the machine: Offered is a Deckel FP1 universal milling machine in very good condition and CE compliant. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs very smoothly. A special feature is that the control cabinet is connected to the machine with a plug. This makes it easier to transport the machine. In this newer FP1 model, the feed is steplessly adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically move to. The FP1 was used in a training workshop, where it was only used occasionally. An oil change was performed. Mechanically and electrically tested. The digital display from Heidenhain makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on site under power.

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 25 rpm, Dear Sir or Madam, We are offering a Deckel FP2 Aktiv for sale. This newer model stands out primarily due to its stepless speed control with Heidenhain Aktiv control, which makes operation very easy and extremely comfortable. The machine has been thoroughly inspected in our workshop and is in very good condition. You are welcome to inspect it on-site. Delivery time: Available immediately Machine no. 2202-xxxx Table: fixed angular table or swivel-tilt table Travel: X400mm/Y220mm/Z400mm Drive power: 3KW Number of spindle speeds: 16 Speed range: 25-2500 rpm Tool holder: SK40 Drawbar system: S20x2 Feed: Stepless Equipment and accessories: 3-axis digital display Heidenhain, stepless feed control in all 3 axes, Heidenhain digital display with Aktiv control, coolant system, central lubrication, technical documentation, leveling feet, safety devices (optional) Fgjdpfezldnajx Aa Eof Our service promise to you: - We are a certified master workshop in the field of mechanical engineering - All machines are thoroughly inspected - All lubricants and any worn parts are replaced in advance - Upon request, we can completely or partially overhaul the machine of your choice - Upon request, you can order additional accessories such as tools, etc., directly - Upon request, we can install additional equipment such as safety devices, etc., directly - We will gladly take care of shipping and/or installation

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, spindle speed (max.): 2,000 rpm, spindle speed (min.): 80 rpm, type of input current: three-phase, input voltage: 400 V, Equipment: rotational speed infinitely variable, Universal milling machine Deckel FP1 – Very good condition For sale is a Deckel FP1 universal milling machine in very good, well-maintained condition. The machine is equipped with a 3-axis digital display Heidenhain TNC 113 and stepless feed in all three axes. The Deckel FP1 is known for its precision, reliability and durability and is ideal for toolmaking, single-part production, repair work and training companies. Technical data Manufacturer: Deckel Model: FP1 Year of manufacture: 1985 Machine number: 15082 Spindle speed: 80–2,000 rpm Drive power: 1.6 / 2.0 kW Stepless feed in X, Y and Z axis Rapid traverse in all three axes Travel ranges (X/Y/Z): 300 / 160 / 340 mm Fixed angular table Vertical milling head on spindle head, adjustable by 100 mm Vertical and horizontal spindle with SK40 collet Clamping system: S20x2 Spindle brake Fedpfjzlnmmox Aa Esgf Space requirement: 1.30 m x 1.10 m x 1.60 m (L x W x H) Machine weight: approx. 850 kg Equipment - 3-axis digital display Heidenhain TNC 113 - Hydraulic vise - Coolant system - Operating manual The machine is in very good technical and optical condition and is ready for immediate use. An inspection and a test run can be arranged at any time by appointment.

Condition: used, x-travel 800 mm y-travel 400 mm z-travel 300 mm digital readout Heidenhain table surface area 1000 x 520 mm Fedpfx Ajqpl Uuja Esgf turning speed range 40 x 2000 U/min spindle taper SK 40 total power requirement 2,2 kW weight of the machine ca. 2,2 t dimensions of the machine ca. 1700 x 1600 x 1800 m

Condition: good (used), functionality: fully functional, Internal article number: 26065 Universal milling machine Fgjdpfjzfh Idex Aa Eef Deckel FP1 Machine no.: 2101-0315 + 2-axis digital display + Stepped feed The machine comes from an educational institution and is in good condition. You are welcome to inspect the machine while it is powered on, in our heated warehouse with over 500 m² of space.

Condition: good (used), Year of construction: 1975, Deckel FP2 FPS retrofitted tool milling machine with a 3-axis Heidenhain digital display. The machine is in good condition and comes from a training department. It features a fixed table, electrically interlocked milling head guard, and an SK 40 spindle mount. Accessories include various collets and milling arbors. It is in good, operational condition. A demonstration under power can be arranged. Fsdpfx Aajzac Sbs Eogf

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and stepless feed, in very good condition, CE compliant. Technical data: >> Year of manufacture 1990, machine no. 2102-5046 >> Fixed angular table >> Speed: 40 - 2000 RPM >> Stepless feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travel distances X/Y/Z: 300/160/340 mm >> Vertical milling head on spindle support, adjustable by 100 mm >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Fsdpszbb E Asfx Aa Esgf Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, parts list About the machine: Offered is a universal milling machine Deckel FP1 in very good condition and CE compliant. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs very smoothly. In this newer FP1 model, the feed is steplessly adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain control system, you can enter dimensions that the machine will automatically approach. The FP1 was located in a training workshop, where it was only used occasionally. An oil change has been carried out. Mechanically and electrically tested. The digital display from Heidenhain makes the work easier and even more precise. Take the opportunity to inspect and test this machine on site under power.

Year of construction: 1974, condition: like new (used), As good as new Deckel FP1 tool milling machine overhauled by FPS with 3-axis Heidenhain digital readout , Adjustable angle table , SK 40 spindle mount. Spindle brake , accessories : Counter holder , various collets. Very good working condition, can be demonstrated under power by arrangement. Fgedpfsq A Icqsx Aa Eof

Condition: used, power capacity / kW volt / V ampere / A DECKEL MONITOR Bildschirm DIALOG FP2 / FP3 Fjdpfxey S Eb Ro Aa Eegf

Condition: good (used), functionality: fully functional, Internal article number: 26007 Universal milling machine Deckel FP1 Travel distances: X300 / Y160 / Z340 mm Spindle stroke: 60 mm Connection power: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed rate: Continuously variable, 5-500 mm/min Rapid traverse function: Not operational! The machine comes from an educational institution and is in good condition. Fgedpfx Ajzb Ni Aea Ejf You are welcome to inspect the machine while it is powered on, in our more than 500 m² heated storage area.

Condition: good (used), Year of construction: 1976, Deckel FP3 tool milling machine with 3-axis Heidenhain digital display, the machine is in good condition. Rigid table, SK 40 spindle taper, accessories: various collets and arbor holders, counterholder. Good, operational condition. Can be demonstrated under power by arrangement. Fgjdpfx Aajxbx R Uo Ejf
