Year of construction: 1989, condition: ready for operation (used), A stencil screen printing machine Ekra is available. Frame dimensions X/Y: 800mm/570mm, print dimensions X/Y: 500mm/390mm, print speed: 110mm/s, positioning accuracy: +/-0.02mm, squeegee pressure: 320N, table adjustment X/Y: +/-8mm, max. print material thickness: 40mm, machine dimensions X/Y/Z: approx. 1300mm/1050mm/1350mm, weight: approx. 350kg. Documentation available. An on-site inspection is possible. Ksdjymfdmjpfx Ah Eowu

Year of construction: 2008, condition: ready for operation (used), Positioning resolution: 1µm, max. placement rate: 6000cp/h, max. feeder capacity: 310, min. PCB dimensions X/Y: 50mm/50mm, max. PCB dimensions X/Y: 780mm/600mm, PCB thickness range: 0.5mm-3.5mm. Documentation available. An on-site inspection is possible. Kwjdpfeymfcpjx Ah Eeu

Year of construction: 2018, condition: good (used), functionality: fully functional, NeoDen4 pick-and-place machine, available as it is no longer required. Technical specifications/equipment: Manufacturer: NeoDen Model: NeoDen4 Integrated PC including software (runs directly on the machine) Firmware: V4.1.3 B2 Proprietary NeoDen feeders – only for sale as a complete unit Feeder configuration: 24 × 8 mm 7 × 10 mm 5 × 16 mm 2 × 24 mm -> Total of 38 feeders Condition/functionality: Machine starts without issues Axes reference correctly Pick-and-place heads move up/down correctly Camera and LED lighting function properly Feeders are correctly detected (see photos) No pick-and-place operations performed Visually in good, well-maintained condition. The machine was used in a production environment and is currently out of operation. Scope of delivery: NeoDen4 machine Integrated PC incl. software Feeders as specified above (scope of delivery as shown; however, without mounted components) Terms and conditions: - Pickup only - No individual sale/separate items Kwsdpfxoymavqs Ah Eju - Private sale, no warranty, no guarantee, no returns

Year of construction: 2005, condition: good (used), Basic configuration Oven type: Reflow soldering oven with full convection heating Heating zones: 3 zones (convection) Kedpsyl Uvvofx Ah Ejwu Cooling zone: 1 zone (active air cooling) PCB handling: Mesh belt or optional pin (chain) conveyor PCB transport direction: Left → right Dimensions (L × W × H): approx. 2000 × 710 × 1200 mm Weight: approx. 237 kg Controller: Microprocessor (LCD, languages incl. English/German/French) Program capacity: 49 profiles (fixed + freely programmable) Temperature setting: °C / °F Temperature range: approx. 20°C – 300°C per zone Max. reflow width: 10 – 300 mm Conveyor speed: 100 – 800 mm/min (with optional slow-speed module) Transport repeatability: ± 2 mm/min Full convection air circulation: Total heating air: 1200 m³/h Per zone: 400 m³/h Cooling zone: 300 m³/h Atmosphere: air (standard), optional N₂ model available Power requirement (EU): 3×400 VAC, 50 Hz, ~25 A Power requirement (US): 3×208 VAC, 60 Hz Continuous power: ± 6.1 kW Start-up/warm-up power: ± 10 kW during initial warm-up Min. exhaust: approx. 2×250 m³/h recommended 📊 Other details Exhaust: 2 ports (80 mm), temperature < 55°C Sound level: max. 70 dB(A) Safety certifications: CE, EN954-1 Class 3 Features: emergency stop, overheat protection ✔ Reflow soldering of SMT printed circuit boards (Pb-free and standard) ✔ Continuous production and small to medium batch sizes ✔ Prototyping and R&D applications ✔ Optional air or nitrogen operation (depending on model)

Year of construction: 2025, condition: good (used), General Features Type: Desktop reflow oven (infrared + hot air convection) Number of heating zones: 6 (top heating) Cooling zone: 1 internal cooling zone Control: Touchscreen with programmable profiles Application: Prototyping, small to medium series production PCB Specifications Max. PCB width: ± 260 mm Max. PCB length: ± 350 mm Max. PCB thickness: 20 mm Transport: Mesh conveyor (adjustable speed) Temperature & Performance Max. temperature: ± 300 °C Warm-up time: ± 15–20 minutes Temperature control: PID regulation Temperature accuracy: ± 1 °C Number of programmable profiles: multiple (storage possible) Electrical Data Power supply: 220V (single phase) Power: ± 1100–2000 W (depending on version) 📏 Dimensions & Weight Dimensions (L×W×H): ± 1020 × 507 × 350 mm Weight: ± 39 kg Kedpsyl Uu Sofx Ah Ejwu Suitable For Lead-free (RoHS) soldering Prototyping labs Small production environments Universities / development departments

Year of construction: 2011, condition: good (used), Type: Reflow soldering oven for PCB assembly (convection reflow). Manufacturer: SEHO Systems GmbH. Model: GoReflow 1.8. Application: Soldering process using full convection heat for small to medium-sized batches. Kwjdpfxeyl Utbj Ah Eeu Heating and Process Zones Number of heating zones: 5 zones (via convection). Length of heated zone: approx. 1850 mm. Maximum PCB width: approx. 410 mm. Number of cooling zones: 2 zones with active ventilation. Average transport/conveyor speed: approx. 0.40 – 0.55 m/min. Machine Structure and Dimensions Total length: approx. 3200 mm. Width: approx. 1250 mm. Height: approx. 1600 mm. Control and Functions Operation: Touch display or microprocessor-controlled interface (depending on configuration). Flux management: Filter and collection system for solder flux residues. Safety features: Emergency stop button and visual status indicators (signal lamp). Inline integration: Options for connection to SMT production lines via interfaces (optional).

Condition: excellent (used), functionality: fully functional, Good day, Kjdpfoyl Nr Sjx Ah Eewu We are offering used clamping devices from Erowa and 3R, suitable for die-sinking EDM and milling operations. Below is a list of the available items (please refer to the attached images for details): - ER-034387 QuickChuck 50 mounted on a clamping block (Image 03/04) - ER-012299 Quick-Change Chuck NSF on a plate (Image 05/06) - ER-010562 Probe with 2 mm ball (Image 07/08) - ER-010723 ITS 50 Control Arbor (Image 09) - F-Tool Holder with 25 mm square (Image 10/11) - MTS Pallet (Image 12/13) - ER-008566 Collet Holder 50 (Image 14/15) - ER-010495 15 mm Square Alignment Gauge (Image 16/17) - Vice with Erowa platform (Image 18/19) - Erowa Holder with hexagonal slot, e.g. for dial gauge holders (Image 20/21) - Erowa Holder for flexible clamping applications (Image 22/23) - System 3R high-precision vise / can be converted to Erowa on request (Image 24/25) All parts have been thoroughly inspected and are fully functional. Please feel free to contact us if you have any questions or are interested.

Condition: not inspected (used), Bar feeder from manufacturer FMB, model turbo 5-42 XT Kwodpfx Aheyl Ng Nj Eju Condition: used. Available immediately. The bar feeder was mounted on a MAZAK SQT10MS. The price is fixed and includes loading: €650

Year of construction: 2012, condition: ready for operation (used), A placement machine is offered. Manufacturer: MYDATA Mycronic, PCB size X/Y: 70mm/50mm - 554mm/443mm, PCB thickness: 0.4mm - 6.0mm, PCB weight max.: 8kg, SMEMA transfer height typ.: 892mm - 987mm, installation dimensions W/L/H: approx. 2740mm/1740mm/1500mm, machine weight: approx. 1700kg. Inspection by arrangement possible. Kjdpfx Ahsylzh Se Eswu

Year of construction: 2011, condition: ready for operation (used), An inline SMT stencil printer/solder paste printer is offered. Print area X/Y: 50mm/40.5mm - 510mm/508.5mm, PCB thickness: 0.2mm - 6mm, board weight max.: approx. 1kg, print pressure range: 0 - 20kg, core cycle time: approx. 12s, machine alignment capability: greater 2Cpk at +/-12.5µm 6 Sigma, process/wet print accuracy: greater 2Cpk at +/-25µm 6 Sigma, installation space L/W/H: approx. 2060mm/1500mm/1570mm, machine weight: approx. 800kg. Inspection by arrangement possible. Kwsdpfxjylzhls Ah Esu

Condition: good (used), Year of construction: 2019, For sale is a TTnS TCM45A XL C-Coating WorkCell, a fully automatic conformal coating system with a 5-axis Cartesian robotic system for precise PCB coating, including board handling by Kiheung. Key features: - 5-axis robot (±25 µm accuracy) - X/Y speed up to 1,000 mm/s - PCB size: 60 x 60 mm to 450 x 400 mm - PCB thickness: 0.8 – 4.0 mm - Conveyor speed: up to 300 mm/s - Film, spiral, and needle dispensing available - Pulse-spray technology (TPC999 Controller) - EasyCoat Manager ECM v2.0 - 220 V, single phase, max. 3 kVA - Dimensions: 1,470 x 1,650 x 1,580 mm - Weight: approx. 740 kg Kjdpfx Aeylyrvjh Ejwu Ideally suited for precise conformal coating applications in SMT production lines. Inspection possible by appointment. Disassembly and worldwide shipping can be arranged. Sale in cooperation with AS-Equipment.

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, For sale is a fully automatic industrial cleaning system with a multi-bath setup, integrated drying, and vacuum function. A water treatment system is also included as part of the package. Key specifications: Dimensions: 5,700 x 2,300 x 2,600 mm Weight: approx. 2,300 kg 3 x 400 V / 230 V, 50 Hz Power consumption: 63 kVA Kwodoylyiuepfx Ah Eju Protection: 3 x 100 A Protection class: IP2X Noise level: 72 dB Process parameters (adjustable via software): Washing temperature: 20–60 °C Rinsing temperature: 20–40 °C Drying: 20–110 °C 99 storable programs Inspection by appointment possible. Disassembly and worldwide shipping can be arranged. Sale is carried out in cooperation with AS-Equipment.

Condition: used, functionality: fully functional, Coil winding machine Froitzheim und Rudert Winding diameter 250 mm, winding width 500 mm Pneumatic tailstock Kjdpjylydlofx Ah Ejwu

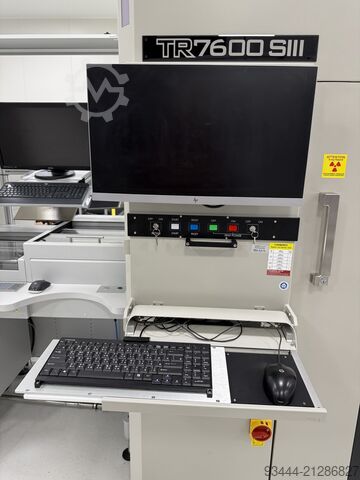

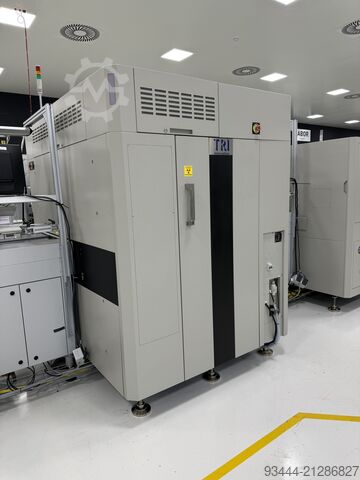

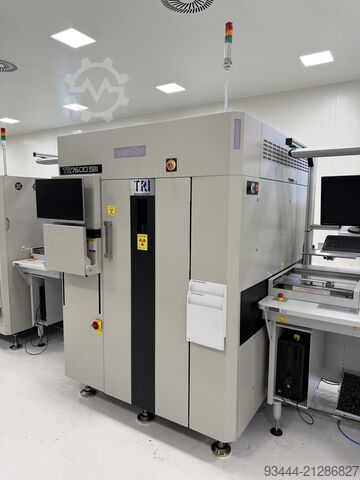

Year of construction: 2018, condition: excellent (used), For sale is a Test Research, Inc. TR7600 SIII Automated X-Ray Inspection (AXI) System – High-Speed 3D CT solution for SMT production lines. Key specifications: 3D CT X-ray inspection (Selective Planar CT + 3D Slicing) X-ray source: up to 130 kV (adjustable) Resolution: 7 / 10 / 15 / 20 µm X-Y resolution: 1 µm Max. PCB size: 900 x 460 mm PCB thickness: 0.6 – 7 mm Max. PCB weight: 12 kg Machine weight: approx. 3,850 kg 200–240 V, single phase, 4 kVA Detects: voids, bridging, head-in-pillow, open, lifted lead, tombstoning, misalignment, among others. Inspection by appointment. Kwodpfxoylx Sno Ah Eou Dismantling and worldwide shipping can be arranged. The sale is carried out in cooperation with AS-Equipment.

Year of construction: 2018, condition: excellent (used), For sale is a Test Research, Inc. TR7700QE 3D Automated Optical Inspection System for pre- and post-reflow inspection in SMT lines. Key Specifications: - 3D AOI with Quad Digital Fringe Projection - 12 MP top camera - 3D height measurement range: 0 – 40 mm - Optical resolution: 10 / 15 µm - X-Y-Z resolution: 1 µm - Max. PCB size: 510 x 460 mm - PCB thickness: 0.6 – 5 mm - Weight: approx. 920 kg Kjdoylx Ddjpfx Ah Eowu - 200–240 V, single phase, 3 kVA - Detection of: missing components, tombstoning, bridging, lifted lead, polarity, shift, insufficient/excess solder, and much more. Inspection by appointment possible. Dismantling and worldwide shipping can be arranged. Sale conducted in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2018, TE Insertion Machine P350 Pin Insertion System 2 processing stations Incl. Asys infeed and outfeed conveyor Inspection possible by appointment. Dismantling and worldwide shipping can be arranged. Ksdpfsylxuiox Ah Eowu The sale is conducted in cooperation with AS-Equipment.

Year of construction: 2015, condition: excellent (used), OSAI NeoPlace 304 modula Pick-and-place machine for capacitors Inspection possible by appointment. Disassembly and worldwide shipping can be arranged. Kwodpfoylxncjx Ah Eou The sale is carried out in cooperation with AS-Equipment.

Year of construction: 2018, condition: excellent (used), Technical Data Max. Product Size (Vacuum Chamber): 450 x 510 mm (L x W) Conveyor Width: 65 – 510 mm Transport Direction: left → right Entry Height: 950 +/- 20 mm Clearance Height: 30 / 30 mm (top/bottom) Conveyor Speed: 0.20 – 3.0 m/min, controlled and monitored Kjdpfx Aoylxgloh Eswu Conveyor Chain: 5 mm cam length PCB Support: triangular, 10 mm high / 10 mm lowerable, per lane Automatic Width Adjustment (Conveyor & Support) Automatic Chain Lubrication, per lane Bottom Heating in Preheating Zones SMEMA Interface Nitrogen Version (N2) incl. Calibration Protocol Software & Interfaces Maintenance Software System Monitoring Fan Monitoring Watcher Software Barcode Software incl. Barcode Reader MES Connection via General Interface (Customer PC) Equipment & Safety Motorized Hood Opening 2x Emergency Stop Optical Warning Light (red/yellow/green) Conveyor Overload Cut-off Exhaust Monitoring incl. Volt-free Contact Conveyor Start Interlock (100°C) Conveyor Rail Parallelism +/- 0.5 mm Operating Hours Counter Standard Painting RAL 7035 ESD, VAC Module RAL 7021 ESD Electrical Data Connection: 1x3~N, PE 230/400V, 50 Hz Vacuum Units: 2x3~N, PE 230/400V, 50 Hz Documentation & Protocols Operating Manual, Mechanical Drawings & Circuit Diagrams (USB) The sale is carried out in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2018, For sale: Test Research, Inc. TR7007DI 3D Solder Paste Inspection System for precise solder paste inspection in SMT lines. Key specifications: Dual digital projector (shadow-free technology) Camera: 12 MP Height resolution: 0.5 µm Height accuracy: 1.5 µm Max. PCB size: 510 x 460 mm PCB thickness: 0.6 – 5 mm Weight: approx. 675 kg 200–240 V, single phase, 3 kVA Ksdjylxcyopfx Ah Eowu Inspection by appointment. Disassembly and worldwide shipping can be arranged. The sale is in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, MTA Selective Soldering System Inspection possible by appointment. Disassembly, packaging, and worldwide shipping can be arranged. Sale in cooperation with AS-Equipment. Kwedpsylw Etefx Ah Esu

Condition: used, functionality: limited functionality, Various conveyor belts available – see photos. For sale both as a package and individually. Inspection possible at any time. Ksdpfx Ajyll Dwjh Eswu

Year of construction: 2026, condition: new, working length 1000-1600 mm Working width 40-150 mm Kedpfx Aoyk H Tdeh Ejwu Thickness 10-80 mm

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, For sale: Zeroclamp Zerobot 100P automation system, commissioned in 2015. (Perfectly suited for a Haas UMC 750, but also compatible with other machine types.) This automation system allows for either vice handling or raw part handling. Offers completely flexible configuration options. Large workpiece storage for many raw parts (fully customizable). Compact footprint. Kodpfxeyk D Dys Ah Eewu Features: * Various mounting plates for raw part handling * Raw part gripper * Second rack for increased part capacity * and much more This solution enables both raw part and clamping device handling. There are numerous possible applications, and we are happy to provide advice.

Year of construction: 2022, condition: used, Operational condition! Kodpsyi Uwusfx Ah Ejwu Ask for specification and quotation!

Year of construction: 2022, condition: used, Operational condition units. Multiple ovens available from 2017 to 2022. Kjdpfx Ahsyi Uu Ho Ejwu Ask for quotation!
