Vertical milling machineTOS KUŘIM
FGSV 32

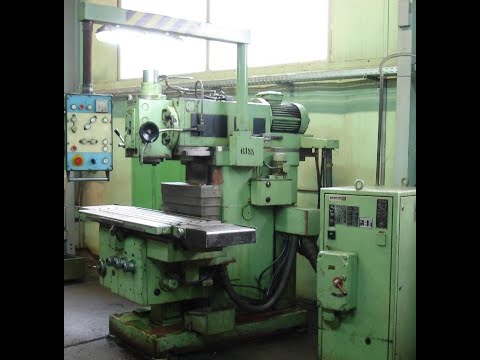

Vertical milling machine
TOS KUŘIM
FGSV 32
Fixed price plus VAT
€4,950
Year of construction
1985
Condition
Used
Location
Panevėžys

Show images
Show map
Machine data
- Machine type:
- Vertical milling machine
- Manufacturer:
- TOS KUŘIM
- Model:
- FGSV 32
- Year of construction:
- 1985
- Condition:
- good (used)
- Functionality:
- fully functional
Price & Location
Fixed price plus VAT
€4,950
- Location:
- Code of enterprise: 248528810 Klaipėdos g. 75, LT-37106 Panevėžys, Lithuania

Call
Technical details
- Feed length X-axis:
- 1,000 mm
- Feed length Y-axis:
- 400 mm
- Feed length Z-axis:
- 450 mm
- Spindle speed (max.):
- 1,800 rpm
- Spindle speed (min.):
- 36 rpm
- Rapid traverse X-axis:
- 4 m/min
- Rapid traverse Y-axis:
- 4 m/min
- Table load:
- 500 kg
- Overall weight:
- 4,200 kg
- Distance table to spindle center:
- 590 mm
Details about the offer
- Listing ID:
- A20530125
- Update:
- 14.11.2025
Description
Manufactured by Tos Kurim (Czechoslovakia)
Year of manufacture 1985
Table size, mm 1400 x 1400
Table longitudinal movement (X), mm 1000
Table cross movement (Y), mm 400
Vertical movement (Z), mm 450
Spindle rotation speed, rpm 35,5-1800
Distance between spindle and table surface, mm 140-590
Spindle taper ISO 50
Table load, kg 500
Table vertical rapid feed, m/min 1
Table cross rapid feed, m/min 4
Longitudinal rapid feed, m/min 4
Longitudinal table movement, mm/min 10-1800
Cross table movement, mm/min 10-1800
Gkodpfx Asxwu Tqjfiod
Motor capacity, kW 11
Machine dimensions, mm 2735 x 2425 x 2475
Machine weight, kg 4200
Year of manufacture 1985
Table size, mm 1400 x 1400
Table longitudinal movement (X), mm 1000
Table cross movement (Y), mm 400
Vertical movement (Z), mm 450
Spindle rotation speed, rpm 35,5-1800
Distance between spindle and table surface, mm 140-590
Spindle taper ISO 50
Table load, kg 500
Table vertical rapid feed, m/min 1
Table cross rapid feed, m/min 4
Longitudinal rapid feed, m/min 4
Longitudinal table movement, mm/min 10-1800
Cross table movement, mm/min 10-1800
Gkodpfx Asxwu Tqjfiod
Motor capacity, kW 11
Machine dimensions, mm 2735 x 2425 x 2475
Machine weight, kg 4200
